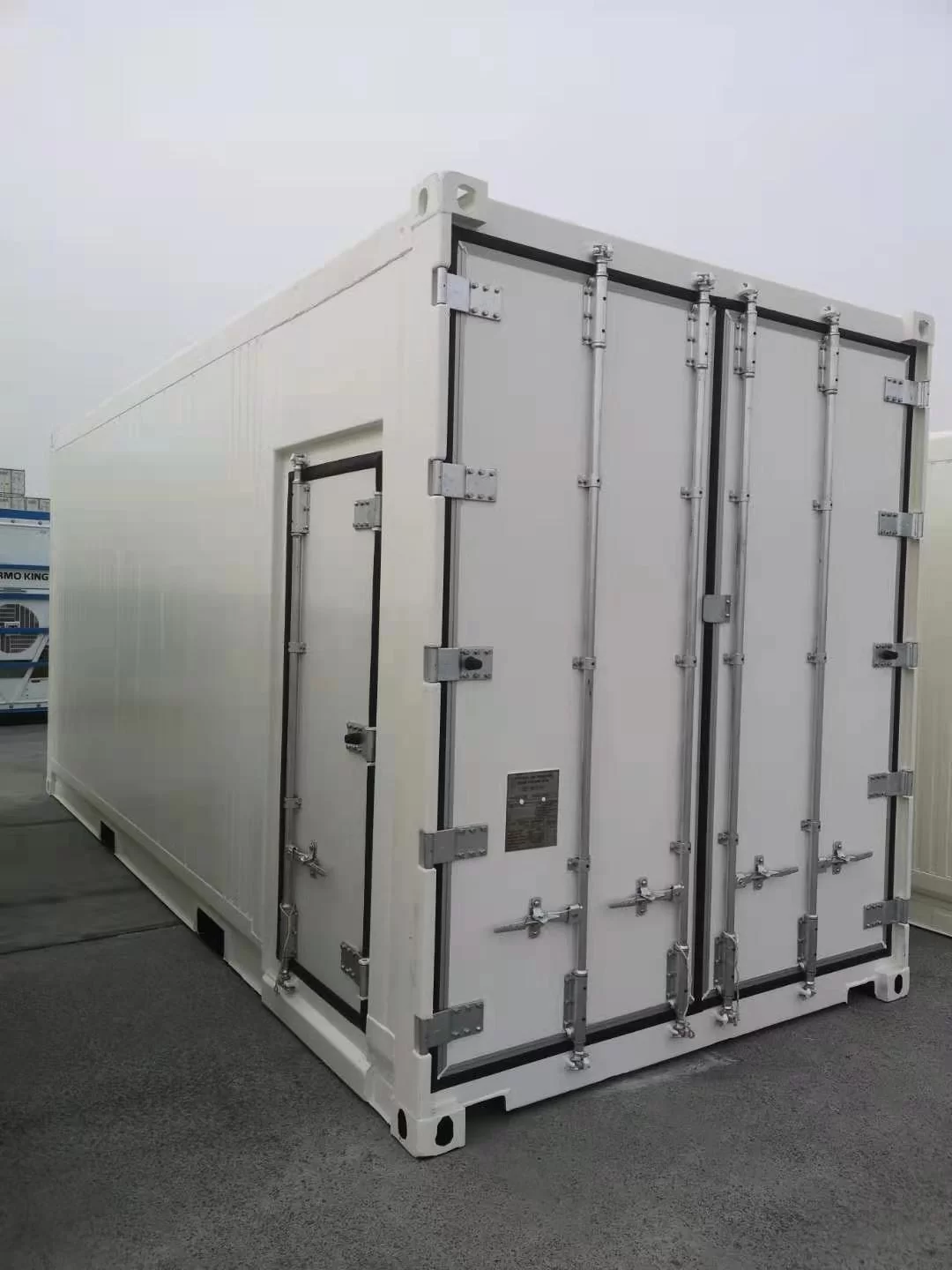

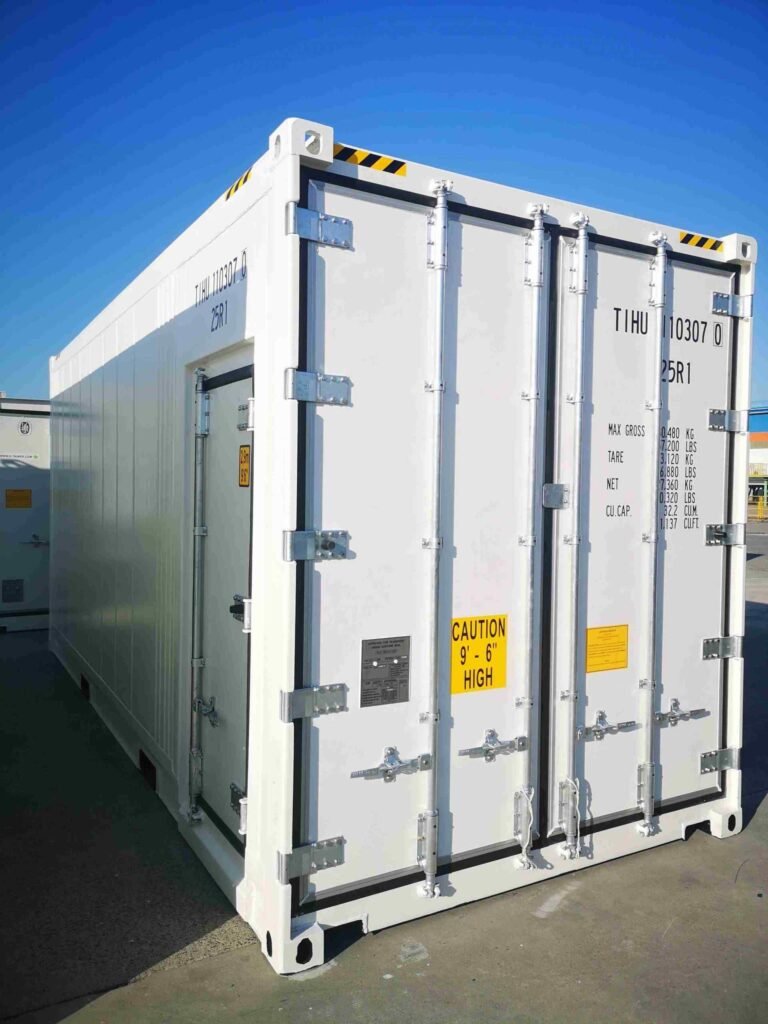

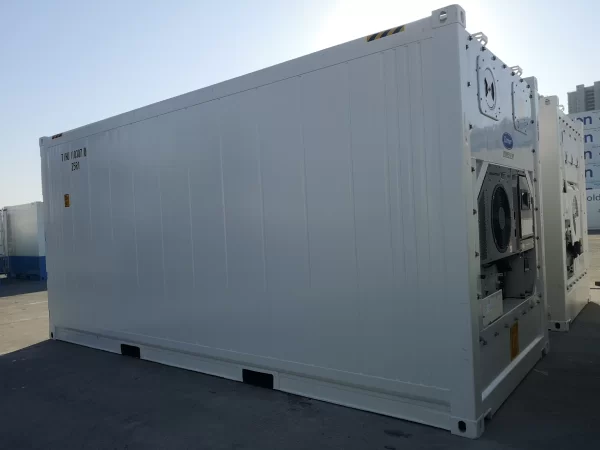

20ft High Cube Refrigerated Container – Single Phase with Side PA Door
The 20ft High Cube Refrigerated Container is the ultimate cold storage solution for businesses requiring precision temperature control without the need for specialized 3-phase industrial power. Offering an extra foot of vertical height and a convenient Side Personnel Access (PA) Door, this unit is designed for maximum efficiency, safety, and ease of use.
Whether you are storing perishable food, sensitive pharmaceuticals, or industrial chemicals, this reefers’ 230V Single Phase system allows for versatile deployment at standard commercial sites, event venues, and warehouses.
The Single Phase & PA Door Advantage
-
Plug-and-Play Compatibility: Engineered to run on 230V Single Phase power, making it accessible for locations without heavy industrial electrical infrastructure.
-
Convenient Personnel Entry: The heavy-duty Side PA Door allows staff to enter and exit quickly without opening the large rear cargo doors, preserving internal temperatures and reducing energy costs.
-
High Cube Vertical Space: With an exterior height of 9’6”, you benefit from increased internal volume, allowing for higher pallet stacking and better airflow.
Key Features
-
Extreme Temperature Range: Maintains a precise climate from -20°F to +70°F (-29°C to +21°C), suitable for deep freezing or climate-controlled ambient storage.
-

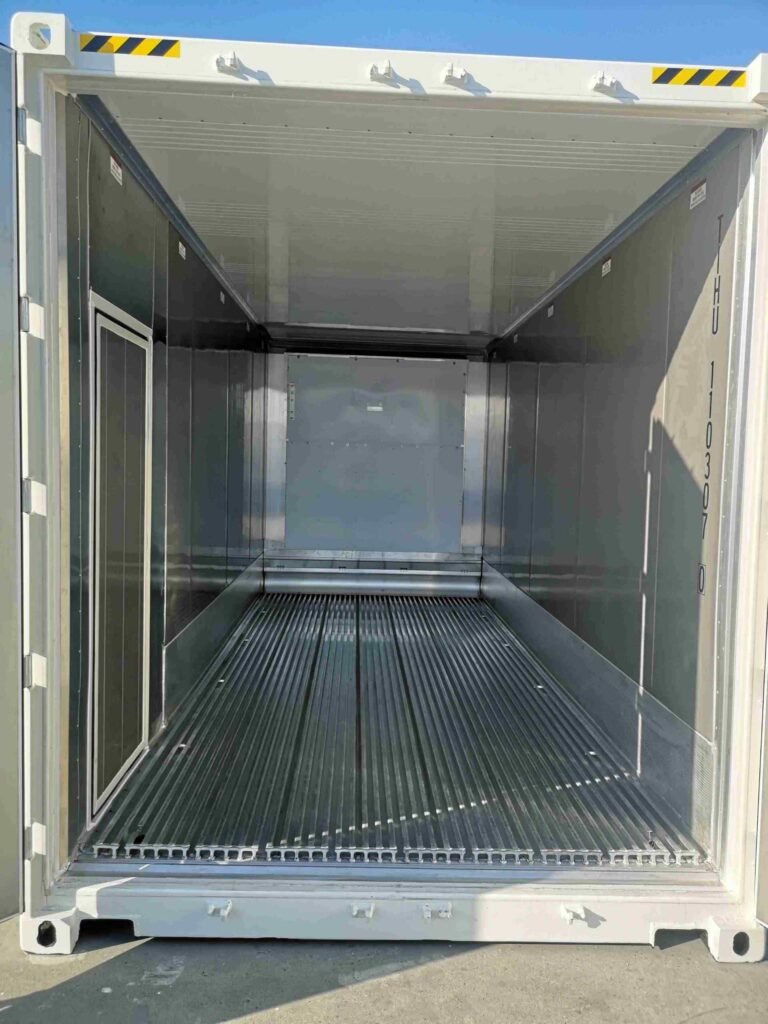

Food-Grade Interior: Features stainless steel or high-grade aluminum interior panels and a Marine-Grade T-bar floor designed for optimal cold air circulation.
-
Superior Insulation: High-density polyurethane foam insulation paired with a Corten steel exterior for maximum thermal retention and weatherproofing.
-
Enhanced Safety: The PA door includes internal release handles to ensure personnel safety at all times.
Technical Specifications
| Feature | Specification |
| Power Requirement | Single Phase (230V) |
| External Dimensions | 20’ (L) x 8’ (W) x 9’6” (H) |
| Internal Dimensions | Approx. 19’4” (L) x 7’6” (W) x 8’10” (H) |
| Temperature Control | Digital Thermostat (-29°C to +21°C) |
| Flooring | Aluminum T-Bar (Airflow Optimized) |
| Access | Dual Rear Cargo Doors + 1x Side PA Door |
Ideal For
-
Food & Beverage: Overflow cold storage for restaurants, butchers, and catering companies.
-
Pharmaceuticals: Reliable, temperature-stable environment for vaccines and medical supplies.
-
Events & Festivals: Secure, ground-level cold storage for large-scale outdoor events.
-
Agriculture: On-site cooling for harvests and floral storage.
